KAKO RG 6 With Power Cable

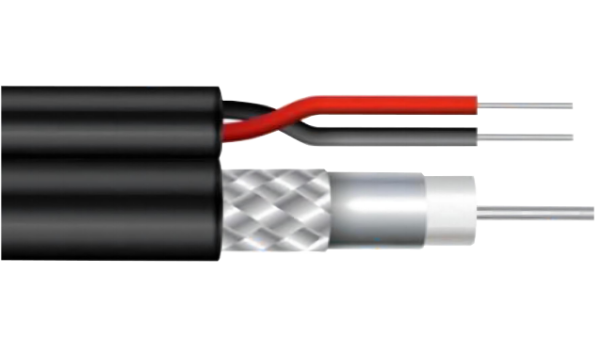

RG 6 with power cable is best used where cable needs to run over a longer distance, with 77% shield braided, it is proven to last longer and has acapacity bandwidth that exceeds 3.0GHz. The shielding consists of an inner aluminum/polyester foil bonded to the insulation, an aluminum 36 AWG braid. Tight foamed Polyethylene insulating skin bonds around center conductor. ”Future-proofing” the installation.

Category Kako Tag KAKO

Products Description

Applications

CCTV ,CATV, HDTV
Two-way Cable Modems

Product Parameter

Conductor : Copper Clad Steel
AWG (mm) : 20(0.81mm)
Dielectric Insulation : Foam PE
Diameter (mm) : 3.66±0.1
Inner Shield : Bonded Alumunium Foil
Inner Braid : 36AWG Alumunium 0.12X112
Jacket : PVC RoHS UV
Diameter (mm) : 6.00±0.2

Product Specifications:

Jacket Color	Length	Colan Part Number
Black	300m	CL-RG5980PBK-300
White	300m	CL-RG5980WH-300
Black	100m	CL-RG5980PBK-100
White	100m	CL-RG5980WH-100

Power Cable

Conductor : Copper Clad Alumunium
AWG (mm) : 7X0.37mm
Dielectric Insulation : Red & Black PE
Diameter (mm) : 1.80±0.05mm
Jacket : PVC RoHS UV
Diameter (mm) : 3.3-4.6mm
Impedance (Ohms) : 75±3
Velocity of Propagation (%) : 83
UV stability : UV
Voltage Rating : <80V
Structural Return Loss (dB) : 5-1000>21, 1001-3000>16

Electric Specifications

Frequency(MHz)	Attenuation, Max, dB/100m	Attenuation, Max, dB/100ft
5	2,92	0,89
55	6,39	1,95
211	11,77	3,59
270	13,28	4,05
300	14	4,27
350	15,21	4,64
400	16	4,88
450	17,38	5,3
550	19,34	5,9
750	22,82	6,96
870	24,72	7,54
1000	26,52	8,09
