COLAN FIBER OPTIC FTTH DROP CORE PREMIUM PLLUS 1 CORE
COLAN FTTH Drop Core Premium Plus 1 Core Fiber Optic Cable is engineered to deliver reliable, high-speed data transmission for Fiber-to-the-Home (FTTH) networks. Designed with a durable structure and low attenuation, this cable ensures stable performance for both indoor and outdoor installations. Its lightweight, flexible design allows for easy installation while maintaining excellent tensile strength and long-term reliability, making it an ideal solution for residential, commercial, and broadband access applications.
Products Description
1. The properties of single mode fiber（ G .657A1）
| Items | Description |
| atten.1310 | ≤0.40dB/km |
| atten.1383 | ≤0.40dB/km |
| atten.1550 | ≤0.30dB/km |
| atten.1625 | ≤0.31dB/km |
| Cable cut-off wavelength | ≤1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.091 ps/(nm2.km) |
| Mode field diameter | @ 1310 nm 8.8~9.6μm |
| Core/Clad concentricity error | ≤0.6μm |
| Cladding diameter | 125±1.0μm |
| Cladding non-circularity | ≤1.0% |
| Primary Coating diameter | 245±7μm |
| Macro-bend induced attenuation
20 mm radius, 1 turn 30mm radius, 10 turns 50mm radius , 100 turns |
Δ≤0.0.1dB @1550nm Δ≤0.1dB @1550nm Δ≤0.05 dB @1550nm |

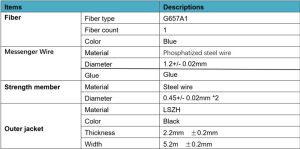

2. Cable Dimensions and Constructions
3. Mechanical and Environmental Characteristics
| Items | Descriptions | |
| Tensile Strength
(IEC 60794-1-2 E1) |
short-term | 600N |
| long-term | 300N | |
| Crush
(IEC 60794-1-2 E3) |
short-term | 2200N/100mm |
| long-term | 1000N/100mm | |
| Temperature Range
(IEC 60794-1-2 F1) |
Storage/Operation | -40℃-+70℃ |
| Installation | -20℃-+60℃ | |
| Bending Radius | Static | 10D |
| Dynamic | 20D |

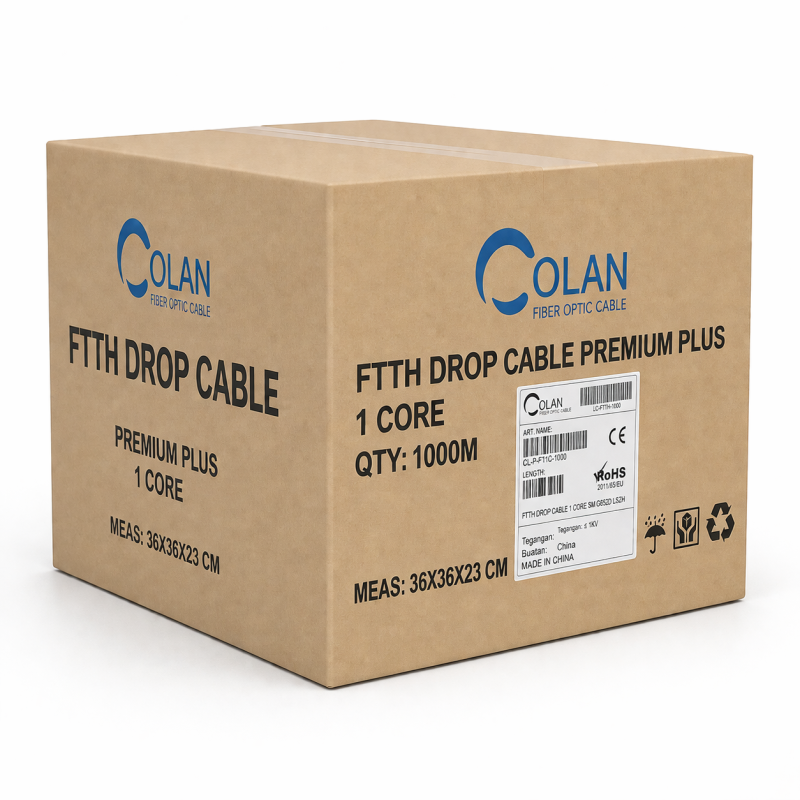

4. Packing: Plywooden Drums Protection+ outer carton
The cables are packed with 1km on a plywood drum and then in master box.
5. Delivery Length
Standard delivery length is 1km/drum or per customer’s requirements.
