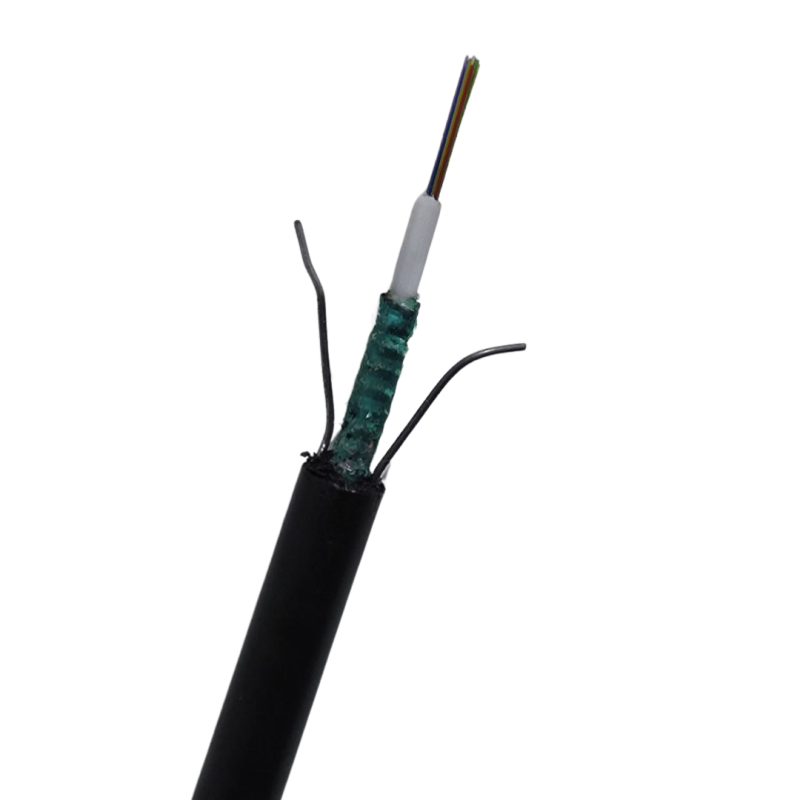

COLAN FIBER OPTIC AERIAL/DUCT GYXTW CABLE 100M SPAN
Designed for outdoor applications, the GYXTW Fiber Optic Cable offers excellent durability, low signal loss, and reliable performance. It is suitable for aerial and duct installations in FTTH, ISP, and telecommunications infrastructure.
Contact Via WhatsApp
Products Description
MODEL :
CL-AD100-06C-2000
CL-AD100-12C-2000
CL-AD100-24C-200
PRODUCT SPECIFICATION

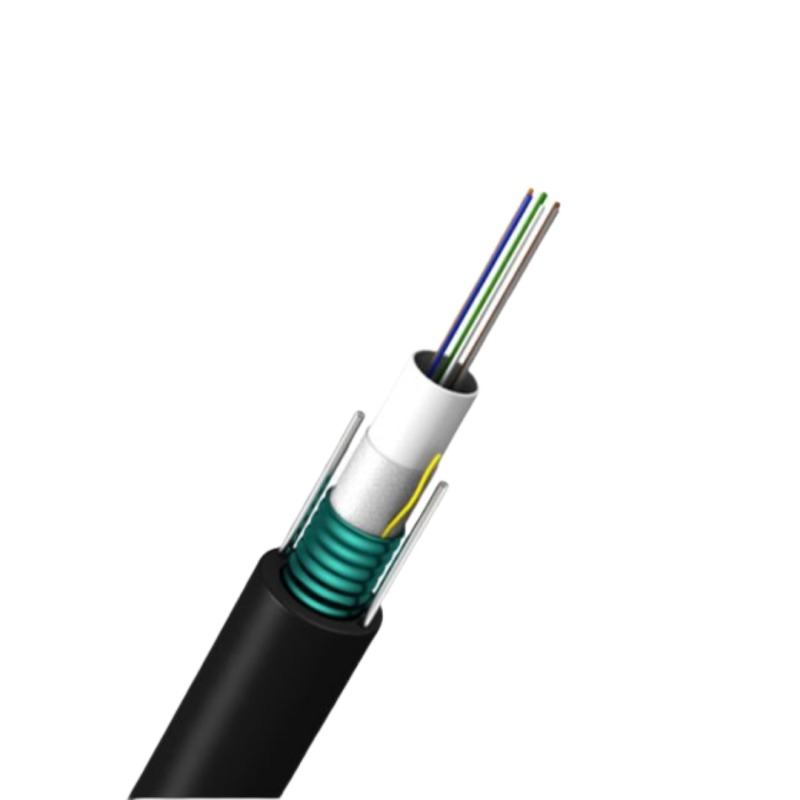

1. Cross Section
| Sketch map | No. | Parts | Spec | Remark | |
| schematic diagram of cable
structure
|
1 | fibers | number | 2 -12 cores | 24 cores |
| Loose tube | material/Di a | PBT/Φ2.0 | PBT/Φ2.5 | ||
| 2
|
Strength member | material | Steel wire | Steel wire | |
| Diameter(mm
) |
Φ0.8mm*2 | Φ0.8mm*2 | |||
| 3 | Jacket material | material | Black PE | Black PE | |
| 4 | Cable diameter(mm) | — | 7.2±0.2 | 7.2±0.2 | |
| 5 | Min. bending radius | Static | 15D | 15D | |
| Dynamic | 30D | 30D | |||
| 6 | Tensile performance | Short term | 800N | 800N | |
| 7 | Crush | Short term | 2000N/100mm | 2000N/100mm | |
| 8 | Cable weight
(kg/km) |
approx. | 53.00 | 55.00 | |
2.（Mechanical and Environmental Characteristics）
| Item | Test standard | Spec | Acceptance Criteria |
| Temperature | ———— | –10 to +70℃ | ———— |
| Range Transportation &Storage | |||
|
Temperature Range Installation |
———— | –10 to +70℃ | ———— |
|
Temperature Cycling |
IEC 60794-1-2-F1 | –25 to +70℃ | Additional Loss<=0.4dB/km |
| Cable Bend | IEC 60794-1-2-E11A | 5×cable Diameter | No fiber breakage |
|
Dynamic Load（short term） |
IEC 60794-1-2-E1A | 800N | Fiber strain<0.33%
Without residual additional Loss |
| Crush | IEC 60794-1-2-E3 | 2000N/100mm | No fiber breakage |
| Impact | IEC 60794-1-2-E4 | 1 N*m | No fiber breakage |
|
Water penetration test |
IEC-60794-1-F5 | Water height: 1m,
Sample length:3m, Duration of test: 24hrs |
No water leakage at the end of the sample |
3.（Optical Characteristics）
| Type of Fible | G652D |
| Attenuation in cable | 0.35dB/km @1310nm 0.25dB/km @1550nm |
4.（Else）
| Sheath Color | black |
| Sheath Marking | Ink printing |

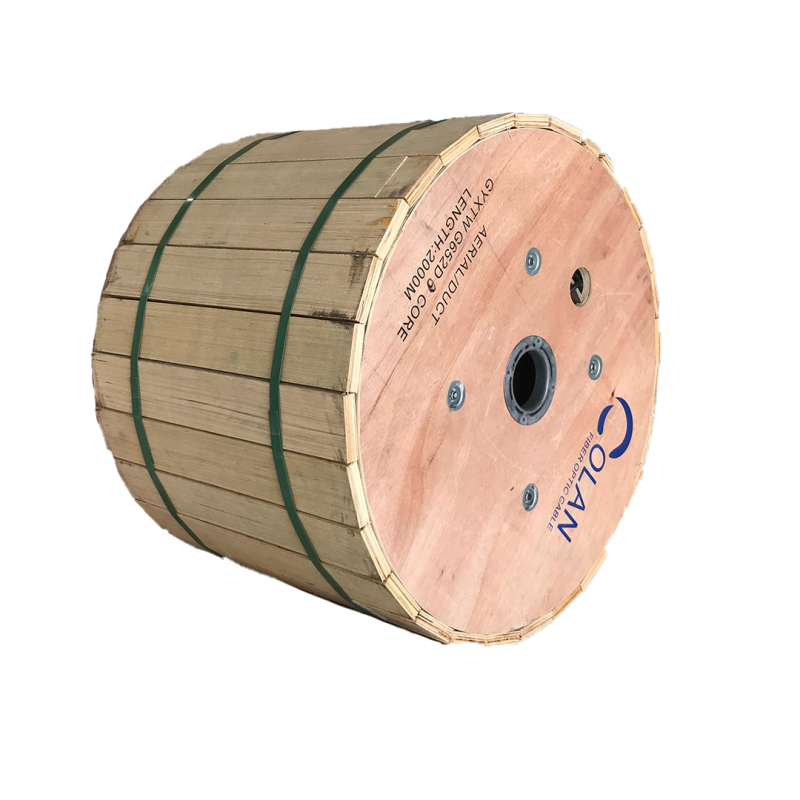

| The length of delivery | 2km/reel or According to the customer |
（Optical fiber characteristics）
Optical fiber characteristics （G.652D FIBER）
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.40dB/km |
| @1550nm | ≤0.30dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs.
Wavelength |
@1285~1330nm | ≤0.04 dB/km | |
| @1525~1575nm | ≤0.03 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope ps/(nm2.km) | 0.073~0.092 | ||
| Dispersion ps/nm.km | @1310nm | ≤3.5 | |
| @1550nm | 13.3~18.6 | ||
| @1625nm | 17.2~23.7 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of
Refraction |
@1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Geometric Specifications | Mode Field Diameter | @1310nm | 9.2±0.4μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±0.7μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 243±7μm | ||
| Coating/Cladding Concentricity Error | ≤12μm | ||
| Core/Cladding Concentricity Error | ≤0.6μm | ||
| Mechanical Specifications | Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Fiber tensile strength | Proof-tested, at least 0.69
Gpa (100 kpsi) |
||
