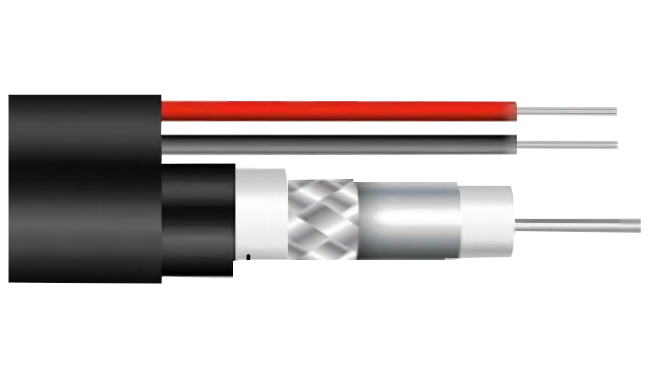

COLAN RG 6 With Power Cable Outdoor

RG 6 with No power cable Out Door is best used where cable needs to run over a longer distance, with 77% Tri-shield braided, it is proven to last longer and h􀀀as a capacity bandwidth that exceeds 3.0GHz. The shiel- ding consists of an inner and outer aluminum/polyester foil bonded to the insulation, an aluminum 34 AWG braid. Tight foamed Polyethylene insulating skin bonds a􀀀round center conductor. ”Future- Proofing” the installation. Supports extended bandwidth satellite service and high-definition TV signals. Exhibits better transmission characteristics and helps differentiate incoming service versus internal cabling infrastructure

Category Coaxial Cable Tags COAXIAL CABLE, COLAN

Products Description

Applications

CCTV ,CATV, HDTV
Two-way Cable Modems
Extended bandwidth satellite service

Product Parameter

Conductor : Copper Clad Steel
AWG (mm) : 18(1.02)
Dielectric Insulation : Foam PE
Diameter (mm) : 4.57±0.1
Inner Shield : Bonded Alumunium Foil
Inner Braid : 36AWG Alumunium 0.12X128
Jacket : PVC RoHS UV
Diameter (mm) : 6.86±0.2

Product Specifications:

Jacket Color	Length	Colan Part Number
Black	300m	CL-RG6T77PBK-300
Black	150m	CL-RG6T77WH-150

Product Parameter

Conductor : Copper Clad Steel
AWG (mm) : 18(1.02)
Dielectric Insulation : Foam PE
Diameter (mm) : 4.57±0.1
Inner Shield : Bonded Alumunium Foil
Inner Braid : 34AWG Alumunium 0.16X80(77%)
Outer Shield : Bounded Alumunium Foil
Jacket : PVC RoHS UV, CE
Diameter (mm) : 6.98±0.2

Power Cable

Conductor : Copper Clad Alumunium
AWG (mm) : 7X0.37mm
Dielectric Insulation : Red & Black PE
Diameter (mm) : 1.80±0.05mm
Jacket : PVC RoHS UV, CE
Diameter (mm) : 8.10-10.2mm
Impedance (Ohms) : 75±3
Velocity of Propagation (%) : 83
UV stability : UV
Voltage Rating : <80V
Structural Return Loss (dB) : 5-1000>20, 1001-3000>16

Electric Specifications

Frequency(MHz)	Attenuation, Max, dB/100m	Attenuation, Max, dB/100ft
5	1,93	0,59
55	5,25	1,6
211	10,01	3,05
250	10,83	3,3
270	11,06	3,37
330	12,27	3,74
350	12,63	3,85
450	14,44	4,4
500	15,29	4,66
550	16,08	4,9
600	16,73	5,1
750	18,54	5,65
870	20,05	6,11
1000	21,49	6,55
1200	23,56	7,18
1450	26,3	8,02
1600	27,25	8,31
1800	29,1	8,88
2200	32	9,76
3000	39	11,90
