RG 6 WITH POWER CABLE

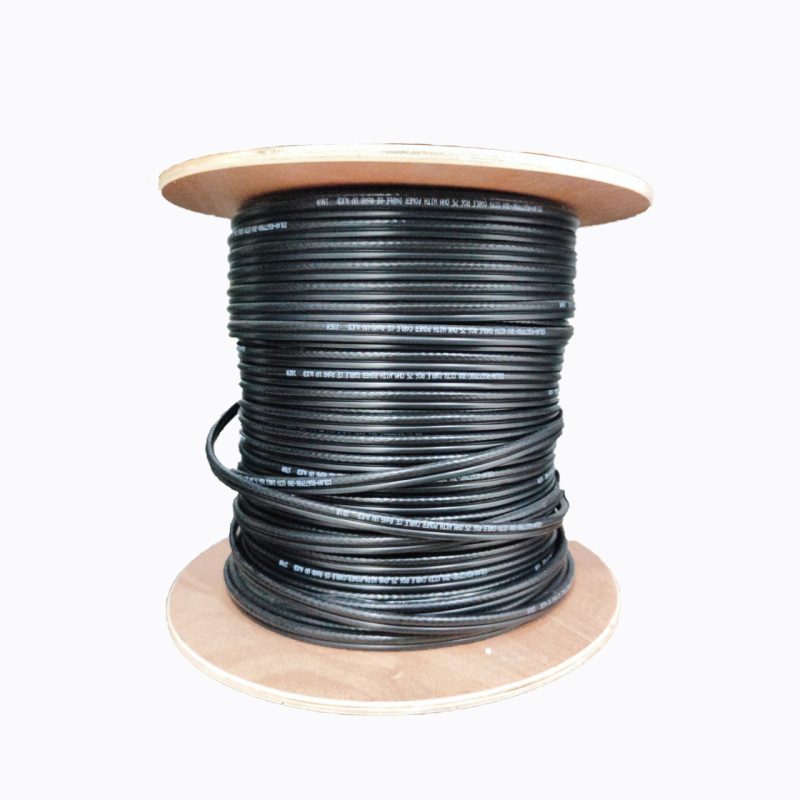

COLAN RG 6 With Power Cable

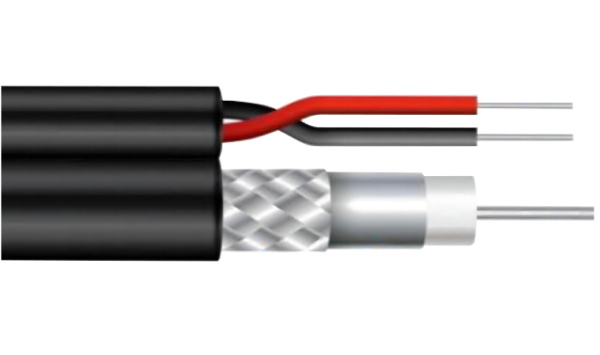

RG 6 with power cable is best used where cable needs to run over a longer distance, with 77% shield brai- ded, it is proven to last longer and has a capacity band- width that exceeds 3.0GHz. The shielding consists of an inner aluminum/polyester foil bonded to the insulation, an aluminum 36 AWG braid. Tight foamed Polyethylene insulating skin bonds around center conductor. ”Future- Proofing” the installation.

Category Tags ,
Contact Us
Contact Via WhatsApp

Products Description

Applications

  • CCTV ,CATV, HDTV
  • Two-way Cable Modems

Product Parameter

Conductor : Copper Clad Steel
AWG (mm) : 18(1.02)
Dielectric Insulation : Foam PE
Diameter (mm) : 4.57±0.1
Inner Shield : Bonded Alumunium Foil
Inner Braid : 36AWG Alumunium 0.12X128
Jacket : PVC RoHS UV
Diameter (mm) : 6.86±0.2

Product Specifications:

Jacket Color  Length Colan Part Number
Black 300m CL-RG677PBK-300
White 300m CL-RG677WH-300
Black 100m CL-RG677PBK-100
White 100m CL-RG677WH-100

Power Cable

Conductor : Copper Clad Alumunium
AWG (mm) : 7X0.37mm
Dielectric Insulation : Red & Black PE
Diameter (mm) : 1.80±0.05mm
Jacket : PVC RoHS UV
Diameter (mm) : 3.3-4.6mm
Impedance (Ohms) : 75±3
Velocity of Propagation (%) : 83
UV stability : UV
Voltage Rating : <80V
Structural Return Loss (dB) : 5-1000>20, 1001-3000>16

Electric Specifications

Frequency(MHz) Attenuation, Max, dB/100m Attenuation, Max, dB/100ft
5 1,93 0,59
55 5,25 1,6
211 10,01 3,05
250 10,83 3,3
270 11,06 3,37
330 12,27 3,74
350 12,63 3,85
450 14,44 4,4
500 15,29 4,66
550 16,08 4,9
600 16,73 5,1
750 18,54 5,65
870 20,05 6,11
1000 21,49 6,55
1200 23,56 7,18
1450 26,3 8,02
1600 27,25 8,31
1800 29,1 8,88
2200 32 9,76
3000 39 11,9
