COLAN RG 59 WITH POWER CABLE

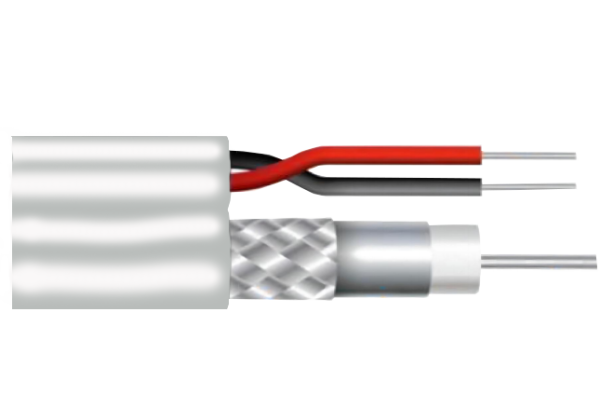

RG 59 with power cable is best used where cableneeds to run over a longer distance, with 80% shield braided, it is proven to last longer and has a capacity bandwidth that exceeds 3.0GHz. The shielding consists of an inner aluminum/polyester foil bonded
to the insulation, an aluminum 36 AWG braid. Tight foamed Polyethylene insulating skin bonds around center conductor. ”Future Proofing” the installation.

Products Description

Applications

CCTV ,CATV, HDTV
Two-way Cable Modems

Product Specifications

Jacket Color	Length	Colan Part Number

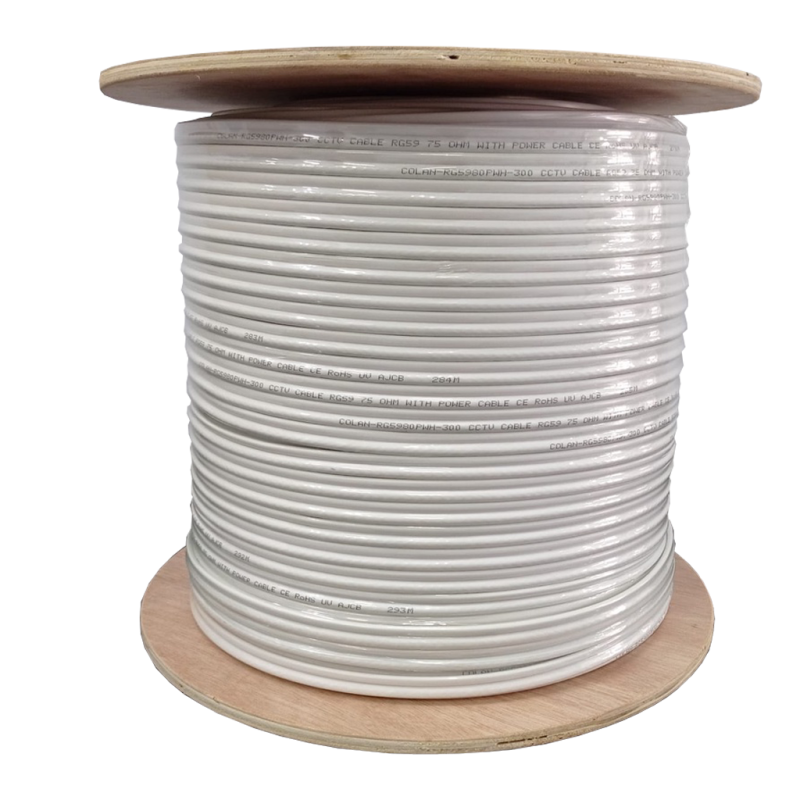

White	300m	KK-RG5980WH-300
White	100m	KK-RG5980WH-100

Product Parameter
Conductor : Copper Clad Steel
AWG (mm) : 20(0.81mm)
Dielectric Insulation : Foam PE
Diameter (mm) : 3.66±0.1
Inner Shield : Bonded Alumunium Foil
Inner Braid : 36AWG Alumunium 0.12X80
Jacket : PVC RoHS UV
Diameter (mm) : 6.00±0.2

Power Cable
Conductor : Copper Clad Alumunium
AWG (mm) : 7X0.37mm
Dielectric Insulation : Red & Black PE
Diameter (mm) : 1.80±0.05mm
Jacket : PVC RoHS UV
Diameter (mm) : 3.3-4.6mm
Impedance (Ohms) : 75±3
Velocity of Propagation (%) : 83
UV stability : UV
Voltage Rating : <80V
Structural Return Loss (dB) : 5-1000>21, 1001-3000>16

Electric Specifications

Frequency(MHz)	Frequency(MHz) Attenuation, Max, dB/100m	Attenuation, Max, dB/100ft
5	2,92	0,89
55	6,39	1,95
211	11,77	3,59
270	13,28	4,05
300	14	4,27
350	15,21	4,64
400	16	4,88
450	17,38	5,3
550	19,34	5,9
750	22,82	6,96
870	24,72	7,54
1000	26,52	8,09
