Product Specialty

• Passed on site audit of China Taier And UL certification in United States.
• Select high-quality environmental protection materials, meet various environmental protection stan-dard, Pass RoHS and REACH test.
• Tested by National Information Transmission Line Quality Supervision and Inspection Center and hasan authoritative third-party test report.
• Products can provide various requirements such as CM, CMR, CMP , LSZH, suitable for variety of compl- ex application environments.

Physical Parameter

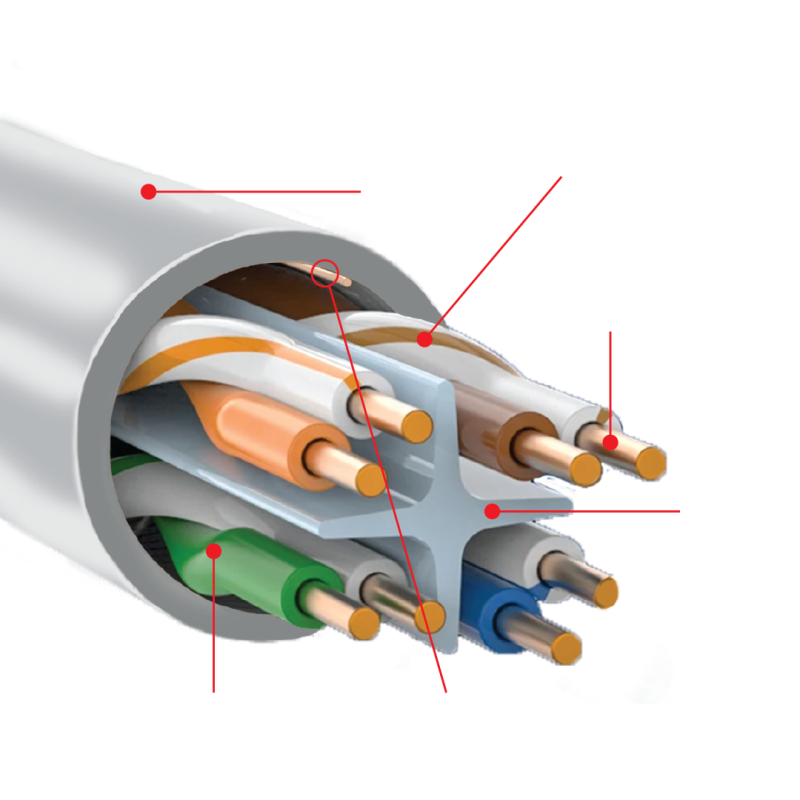

Conductor material : Oxygen-free bare copper 99.99%
Conductor diameter : 0.53±0.01 mm
Insulation Materials : High Density Polyethylene HDPE
Shielding Method : None
Sheath Material : LSZH/PVC/PE
Sheath Thickness : 0.58±0.05
Cable outer diameter : 6.3±0.3mm
Operating Temperature : -20°C to +60°C

Electrical Properties
Characteristic impedance : 100±15Ω(1-250MHz)
Unbalance the capacitance to ground first : ≤160pF/100m
Conductor resistance : ≤9.38Ω/100m
Resistance unbalance : ≤2.5%
Transmission delay difference : ≤45ns/100m
Transmission bandwidth : ≥250MHz
Working Capacitor : ≤5.6nF/100m
Rated Conduction rate : 0.69

Ordering  Information

Description:

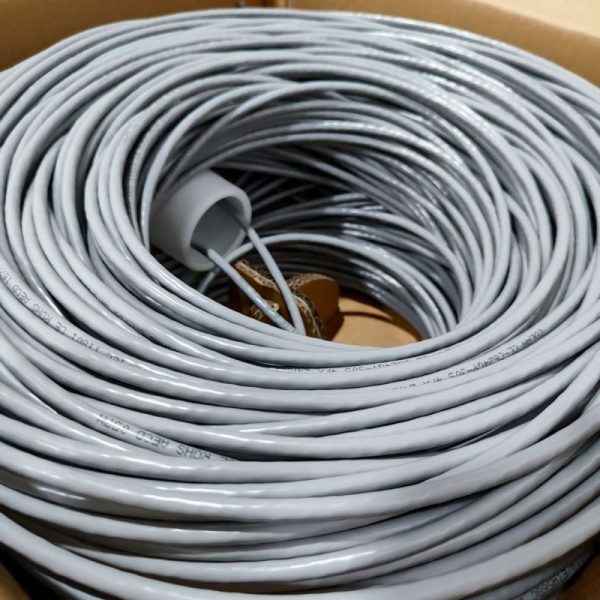

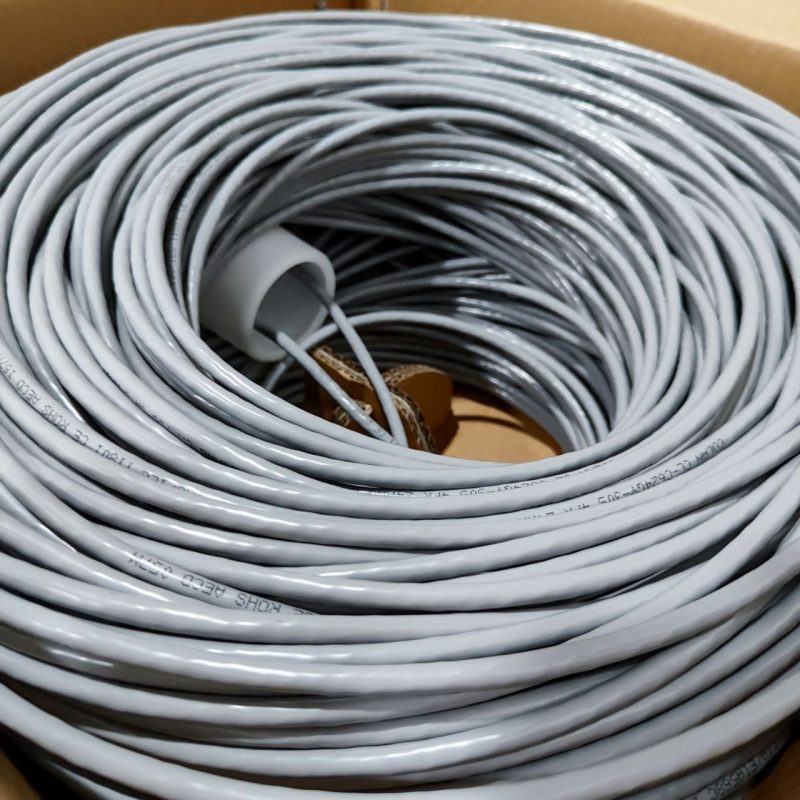

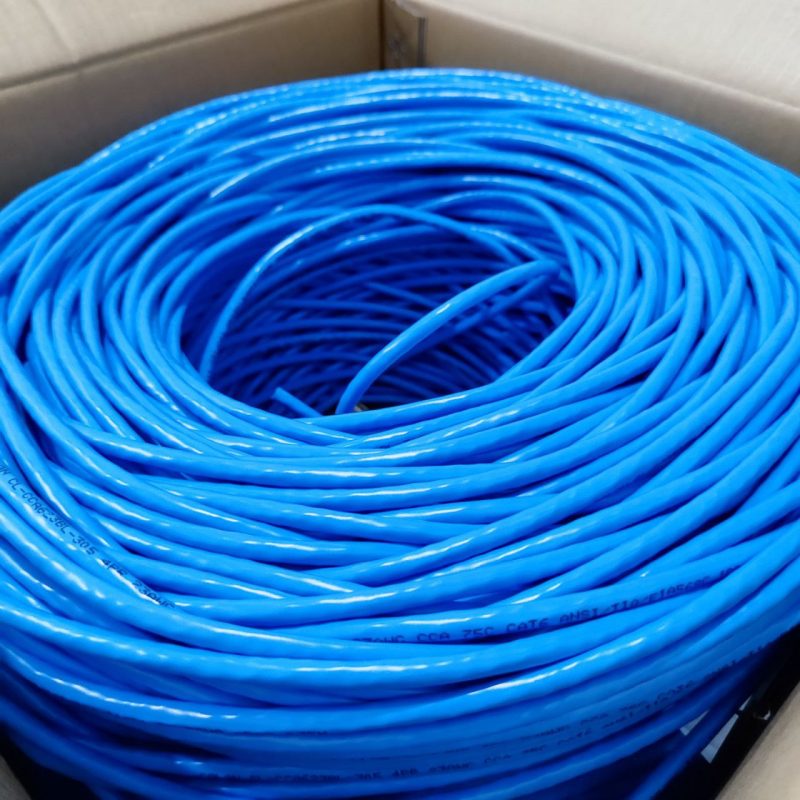

Cat 6 Unshielded Twisted Pair cables delivers various performance parameters that goes beyond the latest ANSI/TIA- 568.2- D-2018, ISO/IEC 11801-2017, IEC 61156-1-2007, GB/T 50311-2016, YD/T 926.2-2009,YD/T 1019-2013 Cat 6 standard. When used as the horizontal cable, the channel provides ≥ 250Mhz of bandwidth. Produced by new imported Rosendahl equipment, with excellent and stable production process. Finished conductor meets domestic standard of 0.53mm in diameter, ensuring High quality. Excellent cross frame design, stable wire pair structure, reduce internal interference of cables and improve product performance indicators
