Characteristic:

• Passed on site audit of China Taier And UL certification in United States.
• Select high-quality environmental protection materials, meet various environmental protection stan-dard, Pass RoHS and REACH test.
• Tested by National Information Transmission Line Quality Supervision and Inspection Center and has an authoritative third-party test report.
• Products can provide various requirements such as CM, CMR, CMP , LSZH, suitable for variety of compl- ex application environments.

Product Parameter:

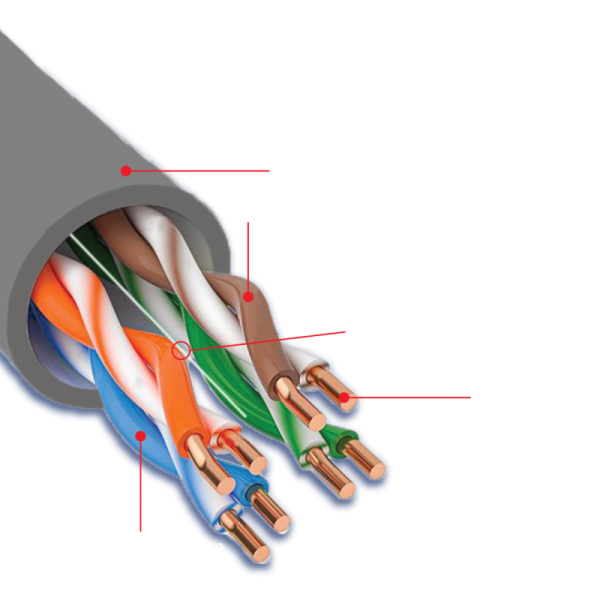

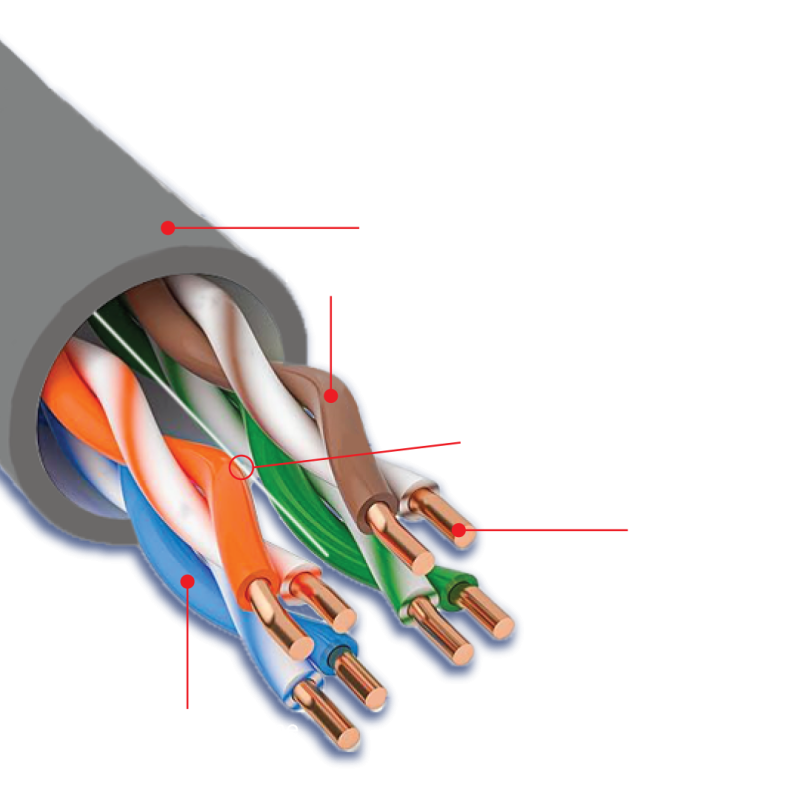

Conductor material : Oxygen-free bare copper 99.99%
Conductor diameter : 0.50±0.01 mm
Insulation Materials : High Density Polyethylene HDPE
Shielding Method : None
Sheath material : LSZH/ PVC/ PE
Sheath Thickness : 0.55±0.05mm
Cable outer diameter : 5.0±0.3mm
Operating Temperature : -20°C to +60°C

Electrical Properties:
Characteristic impedance : 100±15Ω(1-250MHz)
Unbalance the capacitance to ground first : ≤160pF/100m
Conductor resistance : ≤9.38Ω/100m
Resistance unbalance : ≤52.%
Transmission delay difference : ≤45ns/100m
Transmission bandwidth : ≥100MHz
Working Capacitor : ≤5.6nF/100m
Rated Conduction rate : 0.69

Ordering  Information

Description:

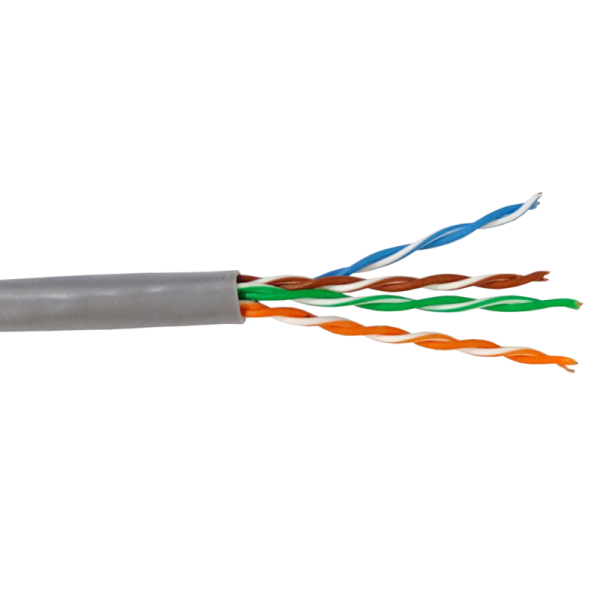

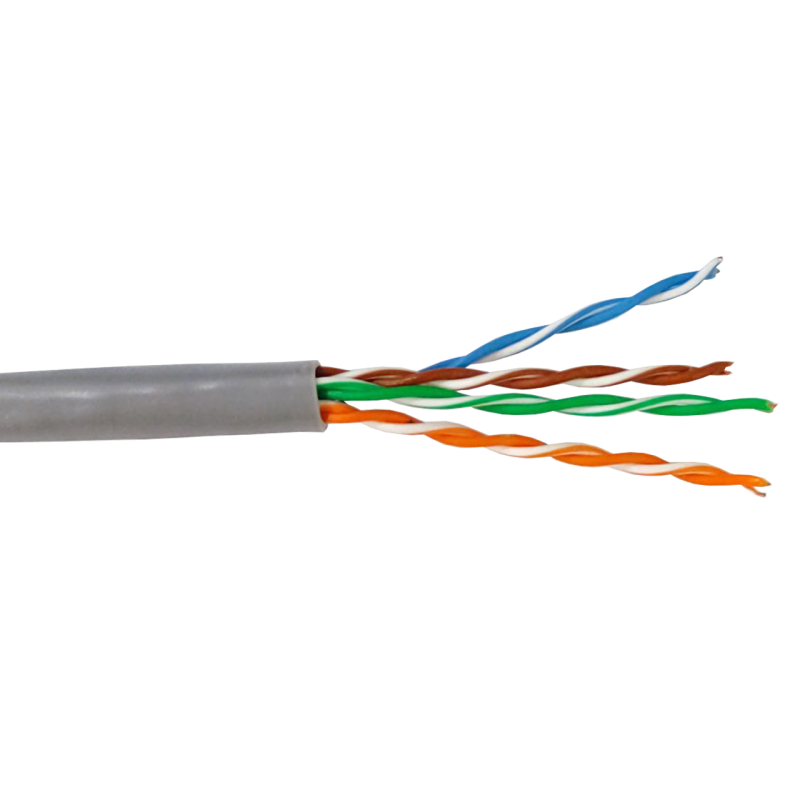

Cat 5E Unshielded Twisted Pair cables delivers various performance parameters that goes beyond the latest ANSI/TIA- 568.2- D-2018, ISO/IEC 11801-2017, IEC 61156-1-2007, GB/T 50311-2016, YD/T 926.2-2009, YD/T 1019-2013 Cat 5E sta- ndard. When used as the horizontal cable, the channel provides ≥ 100Mhz of bandwidth. Produced by new imported Ros- endahl equipment, with excellent and stable production process. Finished conductor meets domestic standard of 0.5mm in diameter, ensuring High quality. Thickness of sheath is 0.55mm makes cable more robust.
